Your Position: Home > Product > Moving Head Series

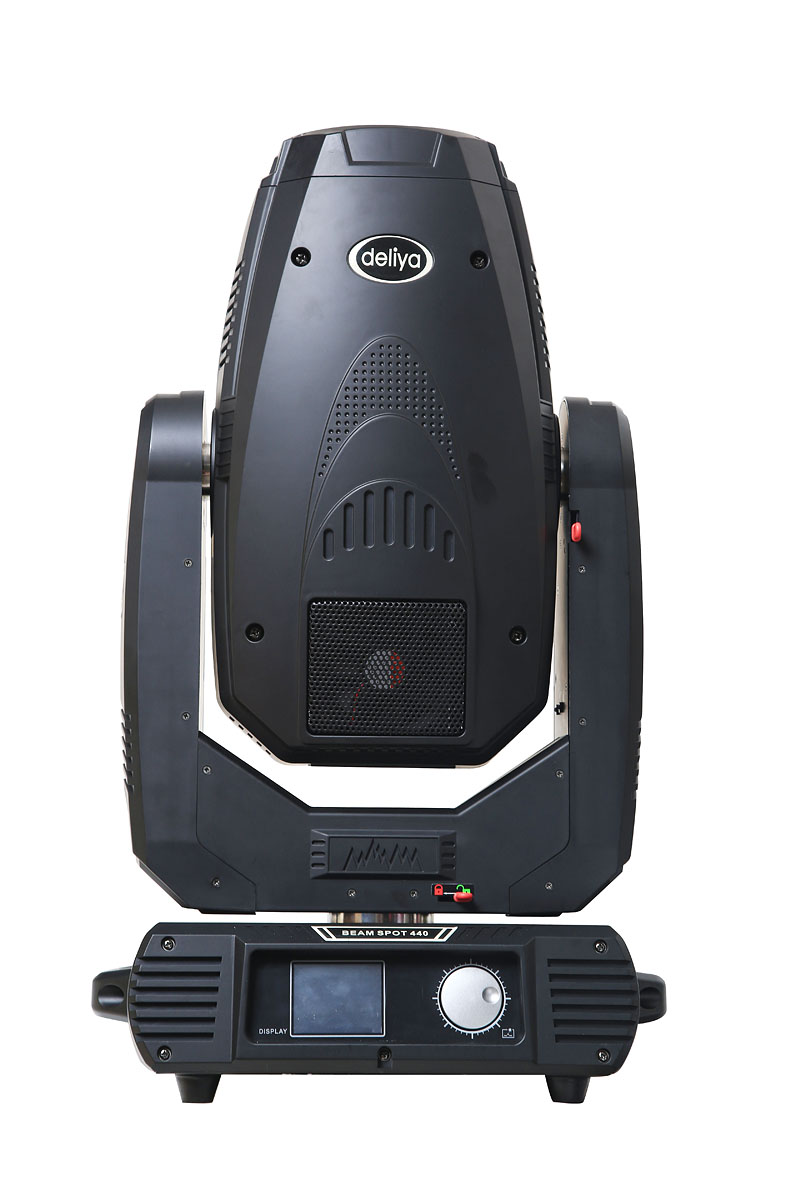

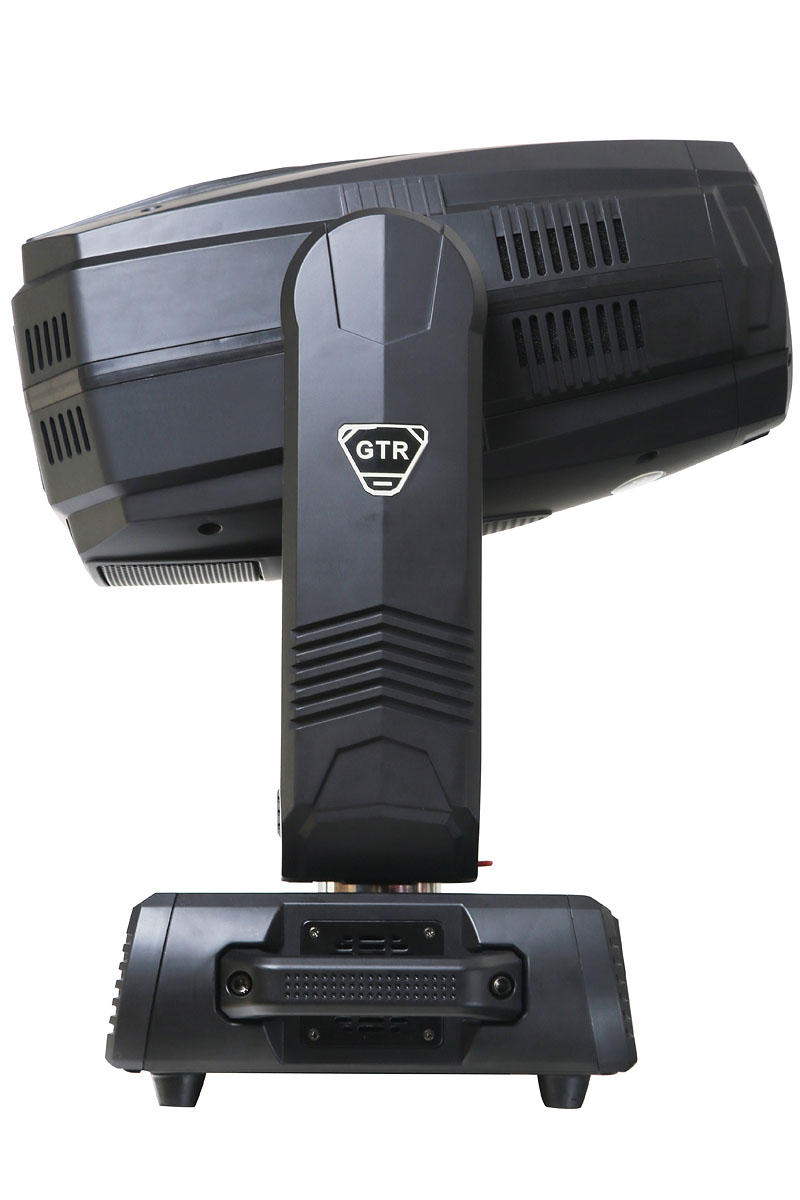

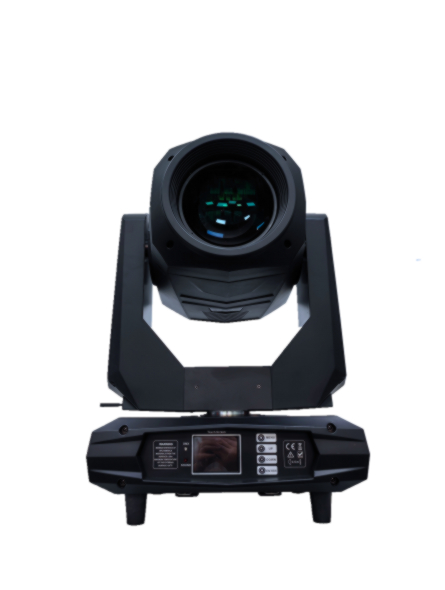

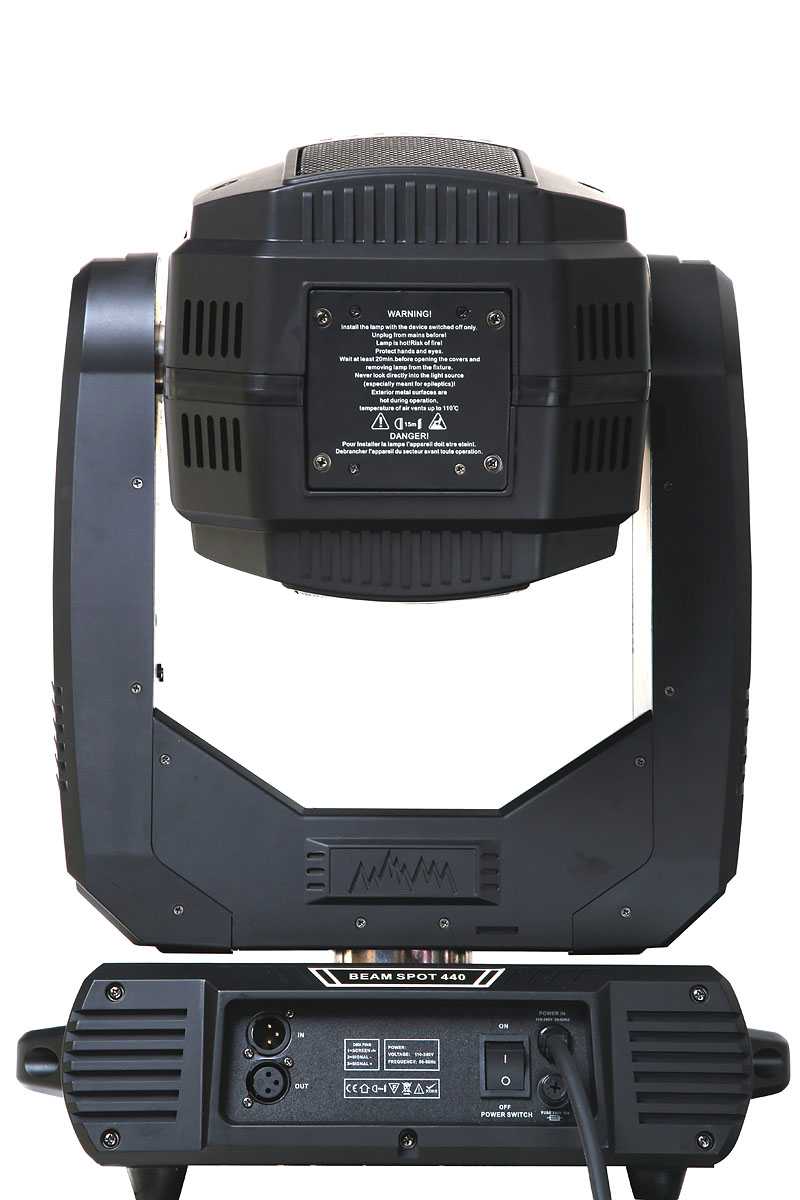

GTR 350 MF (beam/spot/wash)

2018/4/4 viewers
  • Brand :deliya
  • Type :GTR 350 MF (beam/spot/wash)
  • Share：

  • Technical Feature

    Lamp YODN MSD 350 R17
    Lamp control Lamp on/off via controller or manual
    Ballast 100-240V,50/60Hz,500W
    Color wheel one color wheel,11 colors plus open
    Gobo wheel 2 gobo wheels,one fixed gobo wheel with 11 gobos plus open

    		one rotating gobo wheel with 7 changable gobo plus open（Glass outer diameter：Φ21.5mm±0.05mm，Pattern outside diameter：Φ12.5mm）
    Dimmer 0-100% linear adjustment
    Strobe
    High-speed and adjustable speed strobe with macro function
    Frost Independent linear frost
    Beam angel 2.5～39°,linear zooming adjustment
    P/T resolution Pan 540°,8Bit/16Bit
    Tilt 270°,8Bit/16Bit
    Effect wheel 2 rotating prisms,one 16 facet prism, one 4 facet colum prism
      1 fixed 8 facet prism,Fixed prism can mix with each of the 2 rotating prisms
    Control mode 24 Channels model
    Display 2.8 inch display,180°reverse display availabe
    IP Rate IP20
    Dimension 440*310*680 MM
    Weight 25 KGS
Introduction
